RBD18 series Trolley Lift High-temp Furnace
- Product Introduction -
Summary
RBD15 Series Trolley Lift High-temp Furnace is cycle used. The heating element is MoSi2. Working temperature is from 1500-1700℃. All the insulation materials are ceramic fiber board, which raw materials are imported from Japan. The thermal insulation layer use Micro-porous Insulation Board with low thermal conductivity. Exhaust gas purification plant optional, complete all the degreasing and sintering in one process. The furnace has the advantages of high working temperature, small heat storage capacity, good heat preservation, anti-jamming and so on. We choose Shinko multi-segment temperature controller with 100 steps programmable curve, automatic heating/cooling. You can modify the temperature control parameters and procedures in running. Flexible operate, easy to use. Temperature.Precision ±1℃, temperature uniformity±10℃. Heating fast, the fastest heating rate≤5℃/min. Widely used in electronic ceramics, powder metallurgy, machinery, building materials, refractories, special materials, new materials development and other fields.
- Technical Parameter -
| Product Model | RB-18-1505060 |
| Working Temperature | 1700℃ |
| Rated Voltage | 380V±10%,50Hz±5% |
| Rated Power | 160kw |
| Temp. Uniformity | In the uniform temperature area 1400×400× 500, 1600 ℃ ± 10 ℃ |
| Temp.Precision | ±1℃ |
| Insulation Material | Imported Ceramic fiber |
| Temp. Measurement | B type thermocouple |
| Heating Element | MoSi2 |
| Safety Device | over current, over temperature protection |
| Control Method | SCR control / PID temperature control |
| Heating Mode | Programmable control (100 step program, 10 groups of PID parameters) |
| Heating Rate | 0-1600℃/4hr |
| Service Environment | Atmosphere |
| Effective Dimension | 1500*500*600 |
| L×W×H（mm) | |
| Overall dimensions | about 3700*3240*3201 |
| L×W×H（mm) |

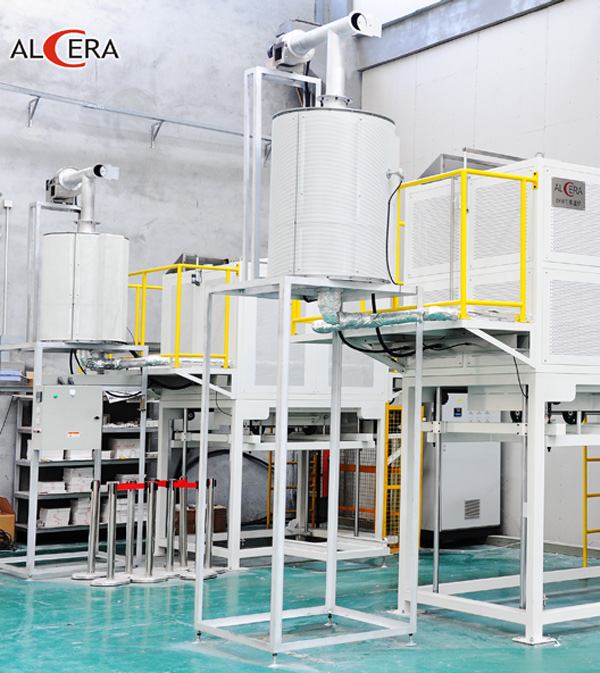

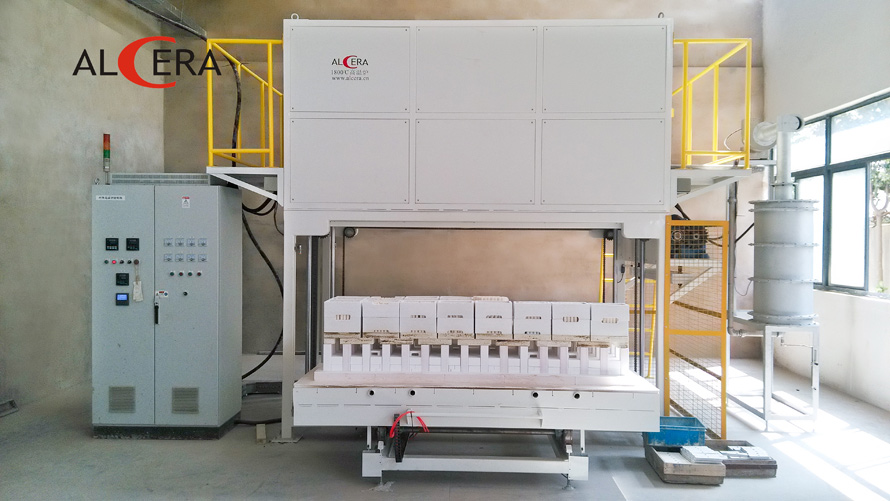

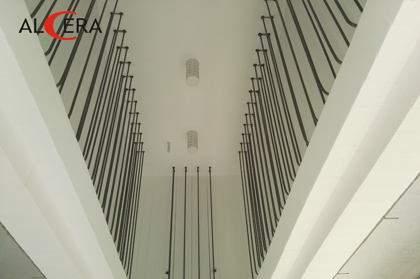

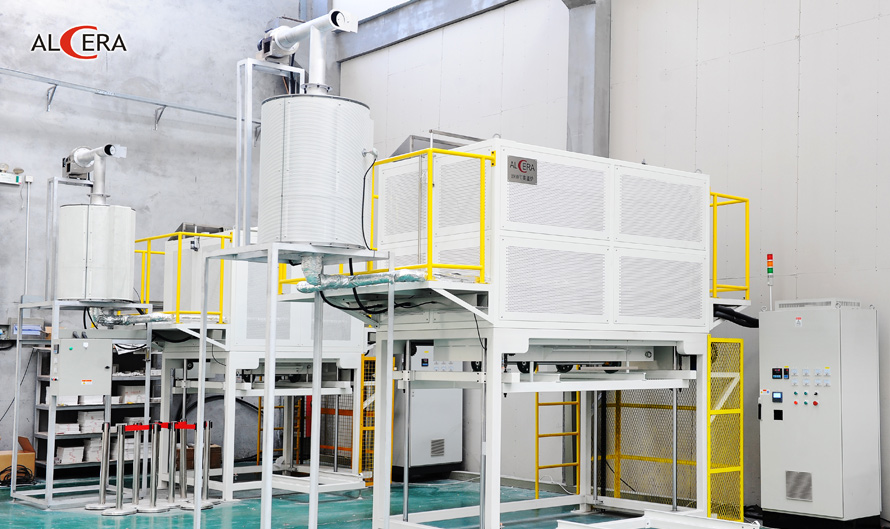

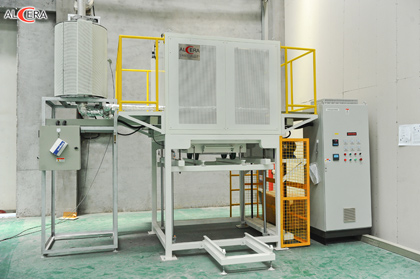

- Product Display -
