Hot Air Cycle Degreasing Furnace
- Product Introduction -
Summary
RX series Degreasing Furnace is a new type fiber resistance furnace, working temperature 1300℃ and 1000℃, with high heating speed and high temperature uniformity. With adjustable air inlet and outlet system, and exhaust gas purification plant, it is a new type “energy saving, environmental protection, high efficiency” electric resistance furnace. Mainly used for drying, degreasing and dumping the light electric communication core materials, and ceramic sintering billet, as using electric resistance belt with four vertical inlet pipes and three exhaust roads. Preheating the fresh air, stirring to cycle the hot air to improve the uniformity of the temperature. We choose the Micro-porous Insulation Board + Ceramic fiber material for insulating. In order to keep the clean of the sintering materials we cover the whole chamber by imported MAFTEC blanket.We choose Shinko multi-segment temperature controller, which has PID parameters auto-setting and artificial setting function, with break alarm protection device for over temperature, low temperature, open circuit of thermocouple and so on. Currently it is the ideal equipment for mass manufacture in domestic and aboard market.
- Technical Parameter -
| Rated temperature | 1000 ℃;Temperature uniformity ±10 ℃ |
| Electric parameters | Degreasing Furnace 3 phase/380 v / 60 kw |
| Exhaust Gas Purification Plant 3 phase/ 380 v/ 13.5 kW | |
| Device size | Effective size: 800 (L) * 800 (W) * 800 mm (H) |
| Appearance size: approximately 2800 (L) * 2800 (W) * 2800 mm (H) | |
| Plate: 400 * 420 * t10mm (4 PCS) | |
| Insulation material | Ceramic fiber insulation materials |
| Heat Element | electric resistance belt set at side walls and bottom |
| Atmosphere | air |
| Air inlet | Inlet the preheated air the bottom, manual adjust the volume |
| Air outlet | 3 forced exhaust holes at the side wall, volume adjustable frequency |

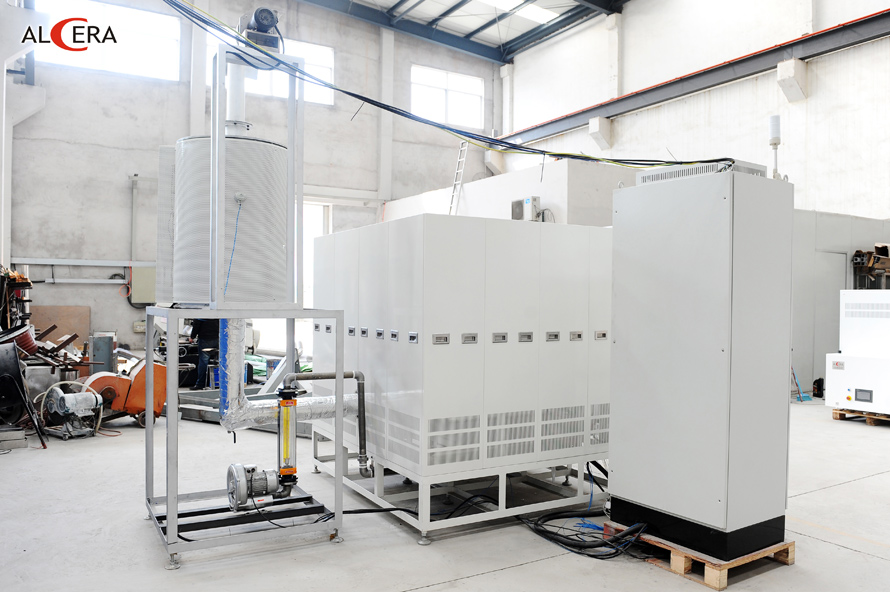

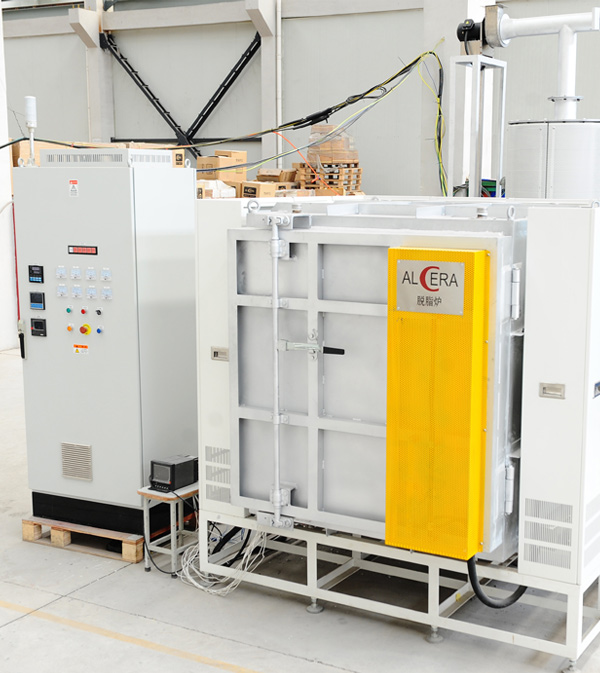

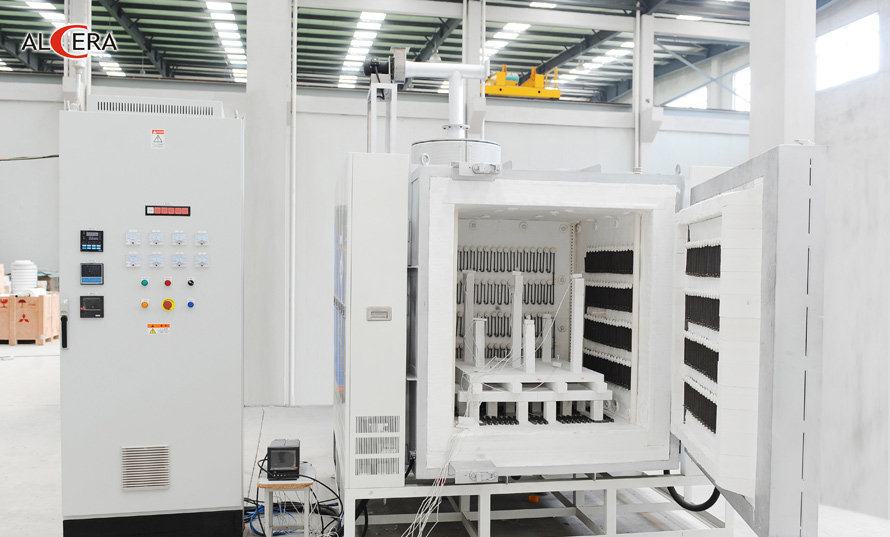

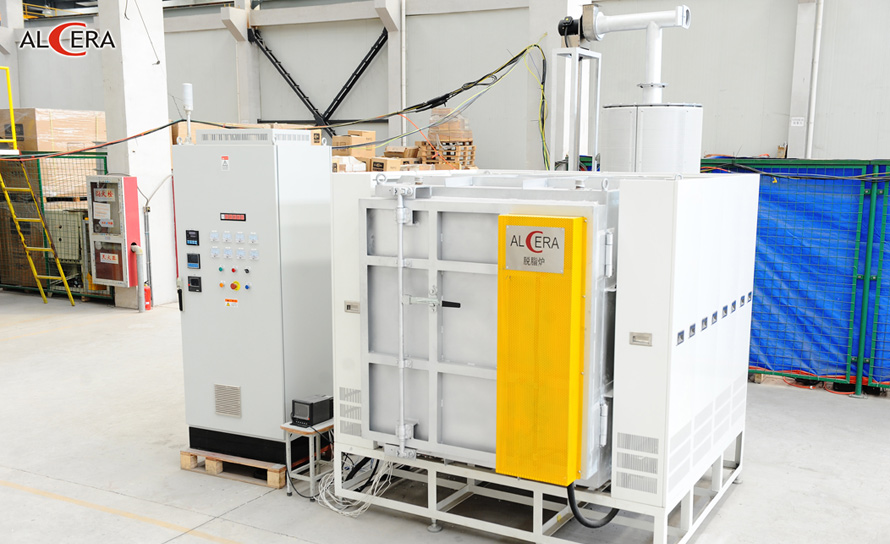

- Product Display -
