Burning tower
- Product Introduction -
Summary
VOC material refers to the volatile organic material at room temperature.The harm of volatile VOC is obvious, when the VOC concentration exceeds a certain concentration, it will affect human body health.
VOC Burning Tower will resolve the VOC emissions during the solar panel is drying and sintering, after reaching sanitation standards, then release it into the atmosphere.
- Technical Parameter -
| No. | Item | Technical Parameter | Remark |
| 1 | Product Model | SK-08-φ4058; |
|
| 2 | Rated Voltage | 380V，3Phrase，50Hz |
|
| 3 | Rated Power | 30kW | Normal26kW |
| 4 | Rated Temperature | 1000℃ |
|
| 5 | Common Used Temperature | 750℃ |
|
| 6 | Temp.Precision | ±3℃ |
|
| 7 | Heating Rate | Max：800℃/hr | Heating can be set by user |
| 8 | Furnace Structure | Assembled |
|
| 9 | Treatment Capacity | Max：150m3/h | DESPATCH VOC Capacity |
| 10 | VOC Treatment Efficiency | ＞95% |
|
| 11 | Exit Temperature | ≤70℃ |
|
| 13 | Cooling Method | Air Cooling + Water Cooling |
|
| 14 | Water Consumption | 15~25L/min |
|
| 15 | Exhaust Pipe Size | DN100 | According site conditions |
| 16 | Coating Color | RAL9003 |
|
| 17 | Control Method | PID Control |
|
| 18 | Adjust Method | SCR Adjust |
|
| 19 | Temp.Measurement | K TYPE thermocouple |
|
| 20 | Electric Element | Schneider Series |
|
| 21 | Protect | open-phase,over current |
|
| 22 | Current | 14 Amps | 2.5mm2 Wire |
| 23 | Display | touch screen |
|
| 24 | Alarm | Sound and light alarm |
|

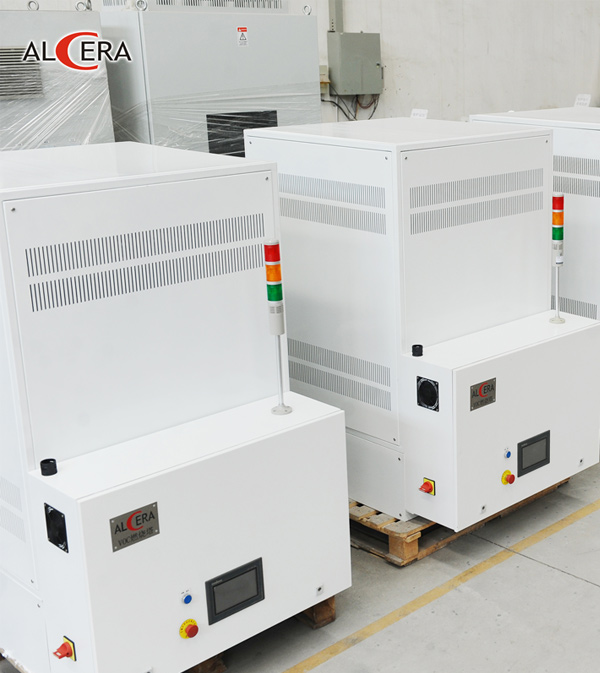

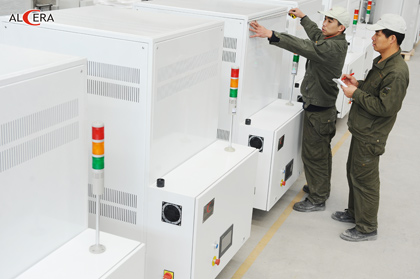

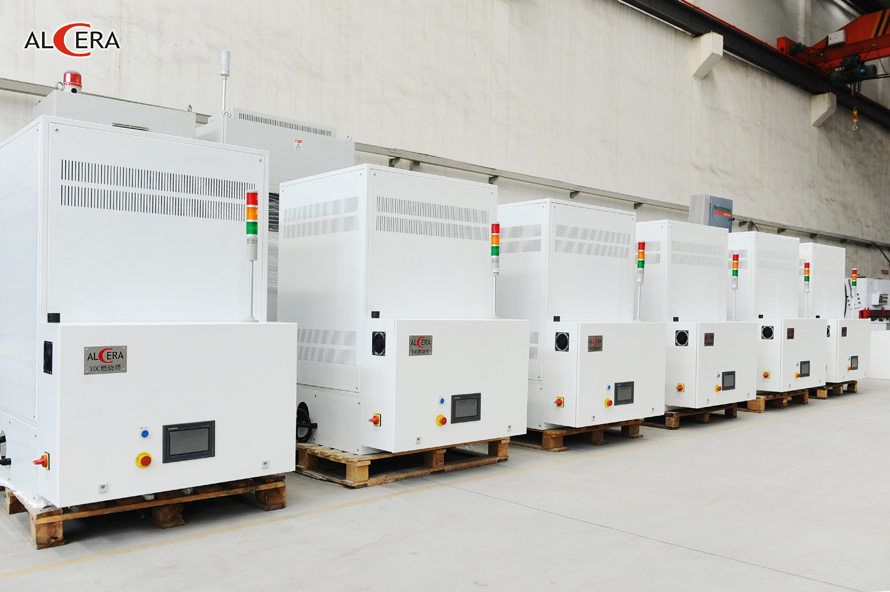

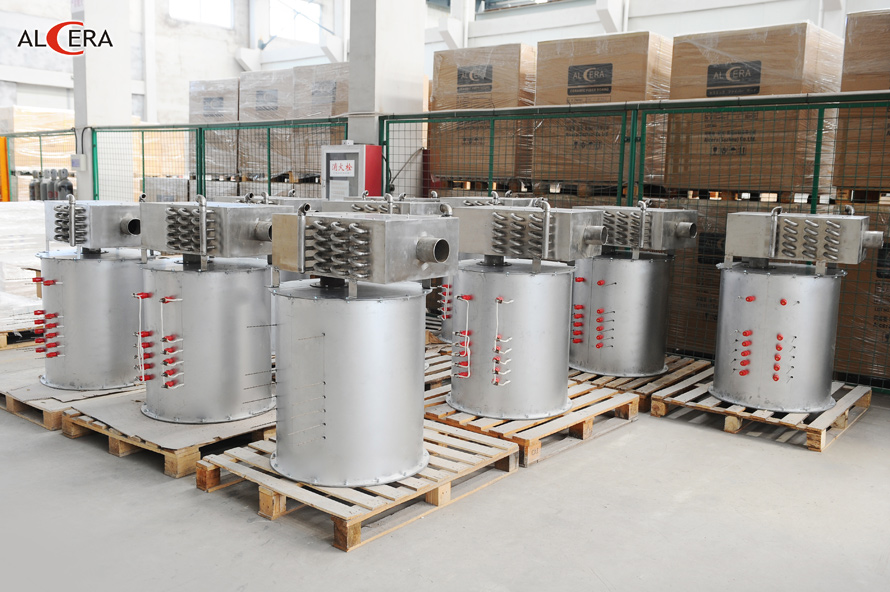

- Product Display -
