AC Ceramic Fiber Blanket
ALCERA 1600 poly-crystalline fiber blanket is made by colloid chemistry method; the alumina content is more than 70%. It is continuous tiled ceramic fiber blanket, with high refractoriness, high tensile strength, good chemical resistance and flat surface, without any organic binder.
- Product Introduction -
Characteristics:
ALCERA ceramic fiber blanket is made of high purity raw materials, through 2300°melting, then spun, acupuncture to the continuous tiled ceramic fiber blanket. The blanket has very high tensile strength, good chemical resistance and flat surface. It does not contain any organic binder.
ALCERA 1600 poly-crystalline fiber blanket is made by colloid chemistry method; the alumina content is more than 70%. It is continuous tiled ceramic fiber blanket, with high refractoriness, high tensile strength, good chemical resistance and flat surface, without any organic binder.

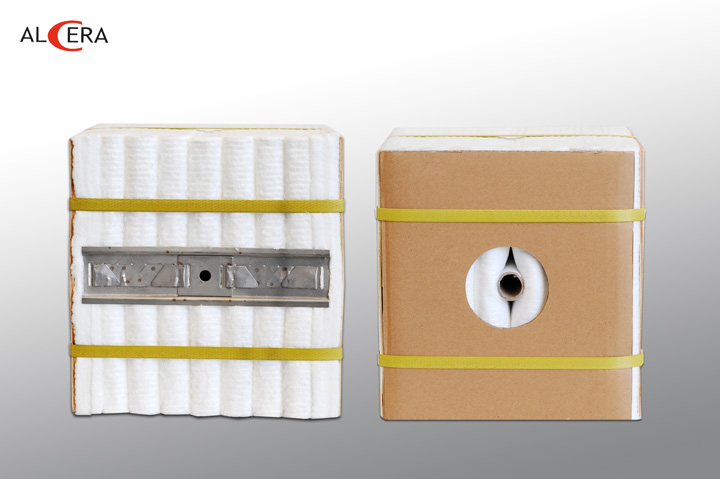

The working temperature can reach 1300 degrees, thermal shrinkage, not to drop. Usually, it can be lifted at the kiln outermost layer directly or by form as modules. Also it can be made to composite block with 1400blanket, even purity 1600block, which long-term working temperature can reach to 1400 Degree with the highest heat resistance, heat preservation effect in the industry.
- Product Description -

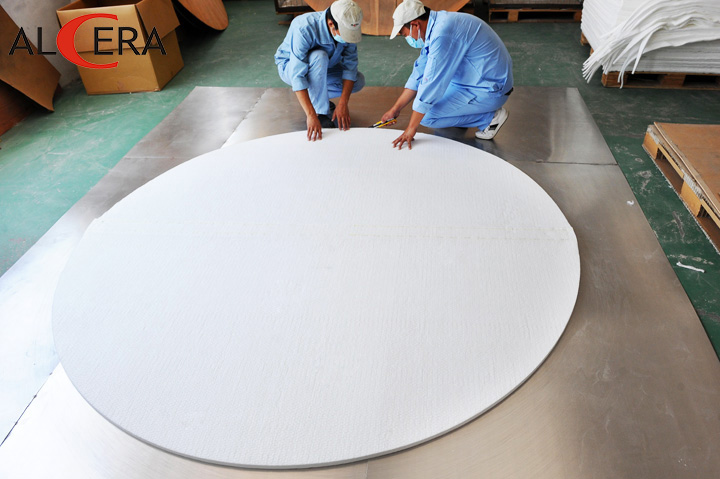

Excellent processing strength, can be arbitrary processed into various shapes
Variety of density and specifications with high processing or construction strength, excellent refractoriness, it can satisfy different kilns’ insulation requirements in application.
The highest working-temperature depends on the using conditions.
If you have any questions, please contact with ALCERA(SUZHOU) CO., LTD.
- Typical Applications -

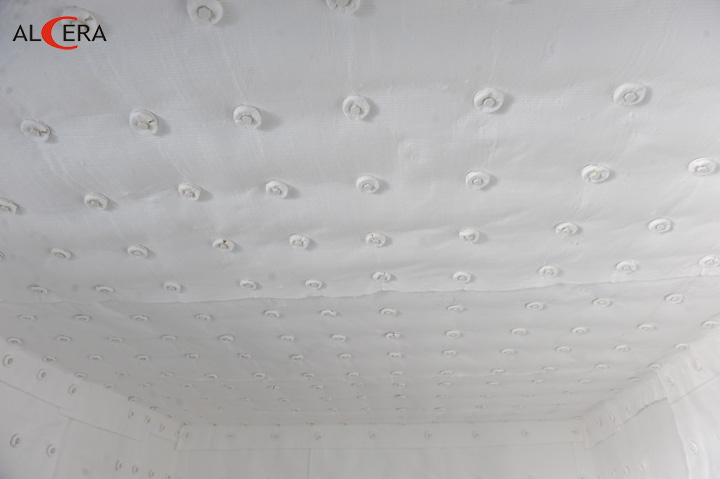

kiln lining, boiler heat insulation, heat treatment temperature control, glass kiln roof insulation
oven door seal, flue liner, pipe insulation, heat insulation parts within the transportation equipment
fire prevention, household appliances heat sealing gasket, slow-release insulation at outdoor heat welding seam
high temperature filter medium, nuclear power and heat insulation, steam and hot steam turbine heat insulation
BLANKET DATA SHEET |
||||
|
1260Blanket |
1400Blanket |
1600Blanket |
|
Working Temperature |
1100 |
1200 |
1500 |
|
Density kg/m³ |
128 |
128 |
130 |
|
Linear shrinkage (%)*8h |
1.6 |
1.8 |
≦1 |
|
≦1 |
||||
Thermal conductivity |
at 600℃ |
0.17 |
0.14 |
0.16 |
at 800℃ |
0.18 |
0.19 |
- |
|
at 1000℃ |
- |
0.27 |
0.33 |
|
at 1200℃ |
- |
- |
0.48 |
|
Chemical |
ZrO2 |
- |
15.1 |
- |
AL2O3 |
46 |
30.2 |
72 |
|
AL2O3+SiO2 |
99 |
84.4 |
99.5 |
ALCERA CERAMIC FIBER BLANKET |
||||
Temperature |
Density(kg/m³) |
Dimension |

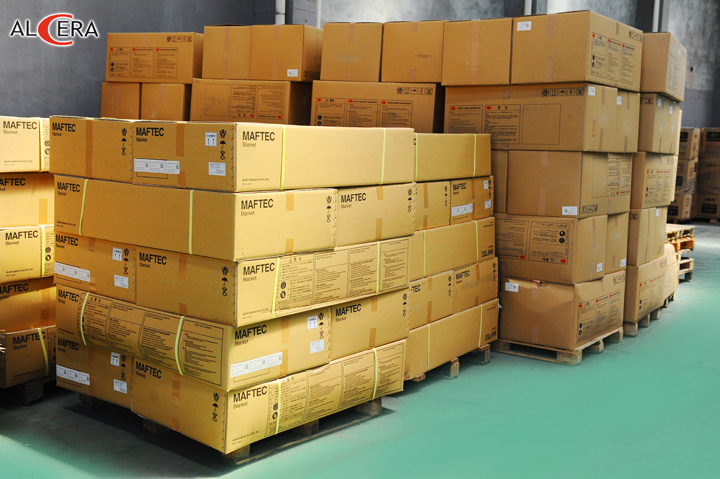

Package |
|
1260 |
96 128 160 |
7200*610*6 |
Carton |
|
7200*610*12.5 |
|
|||
7200*610*25 |
|
|||
3600*610*50 |
|
|||
1400 |
96 128 160 |
7200*610*6 |
|
|
7200*610*12.5 |
|
|||
7200*610*25 |
|
|||
3600*610*50 |
|
|||
1600 |
100 130 150 |
7200*610*12.5 |
Mitsubishi |
|
